Engine problem 1966 Toronado

[Slick66]

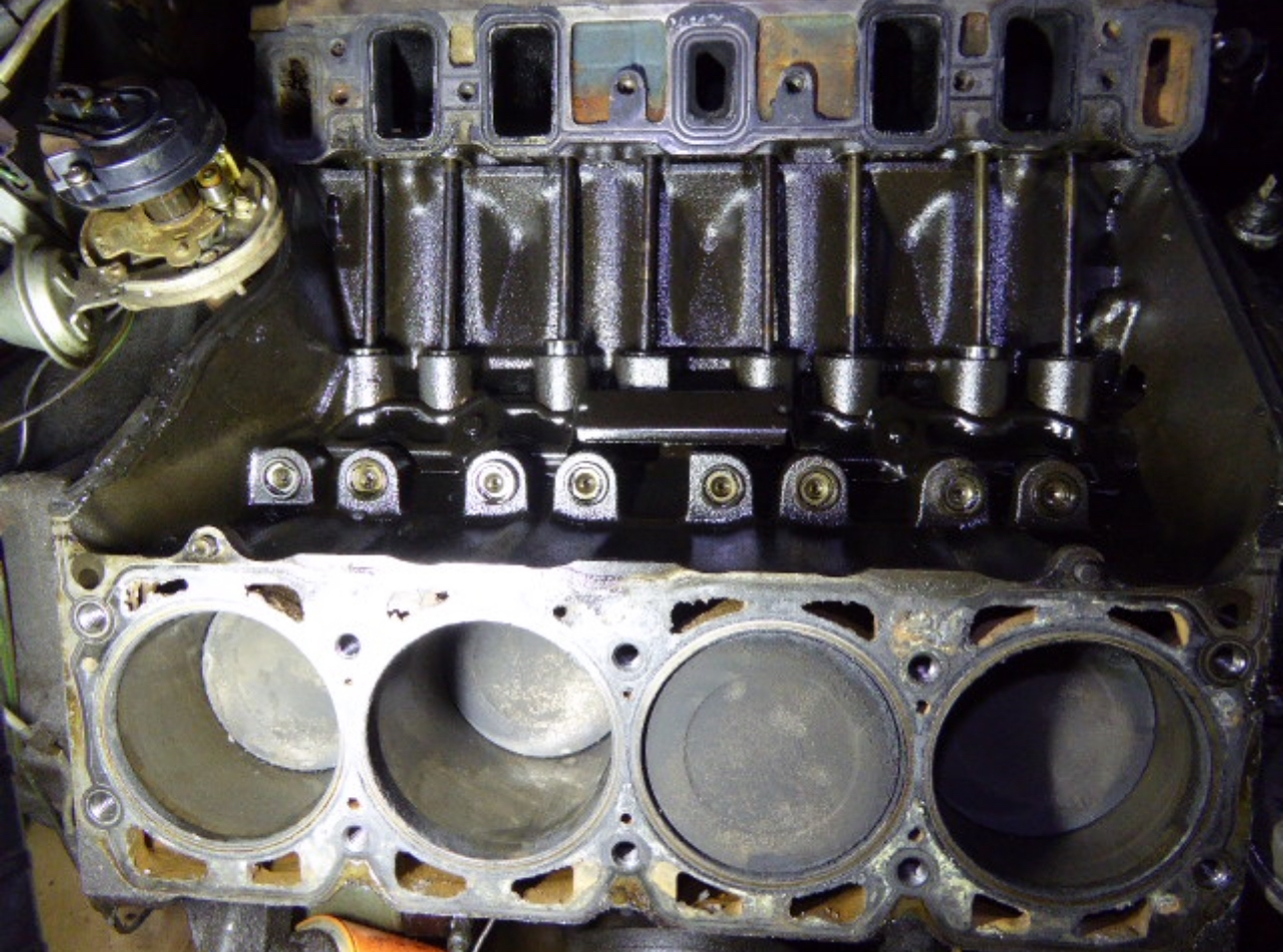

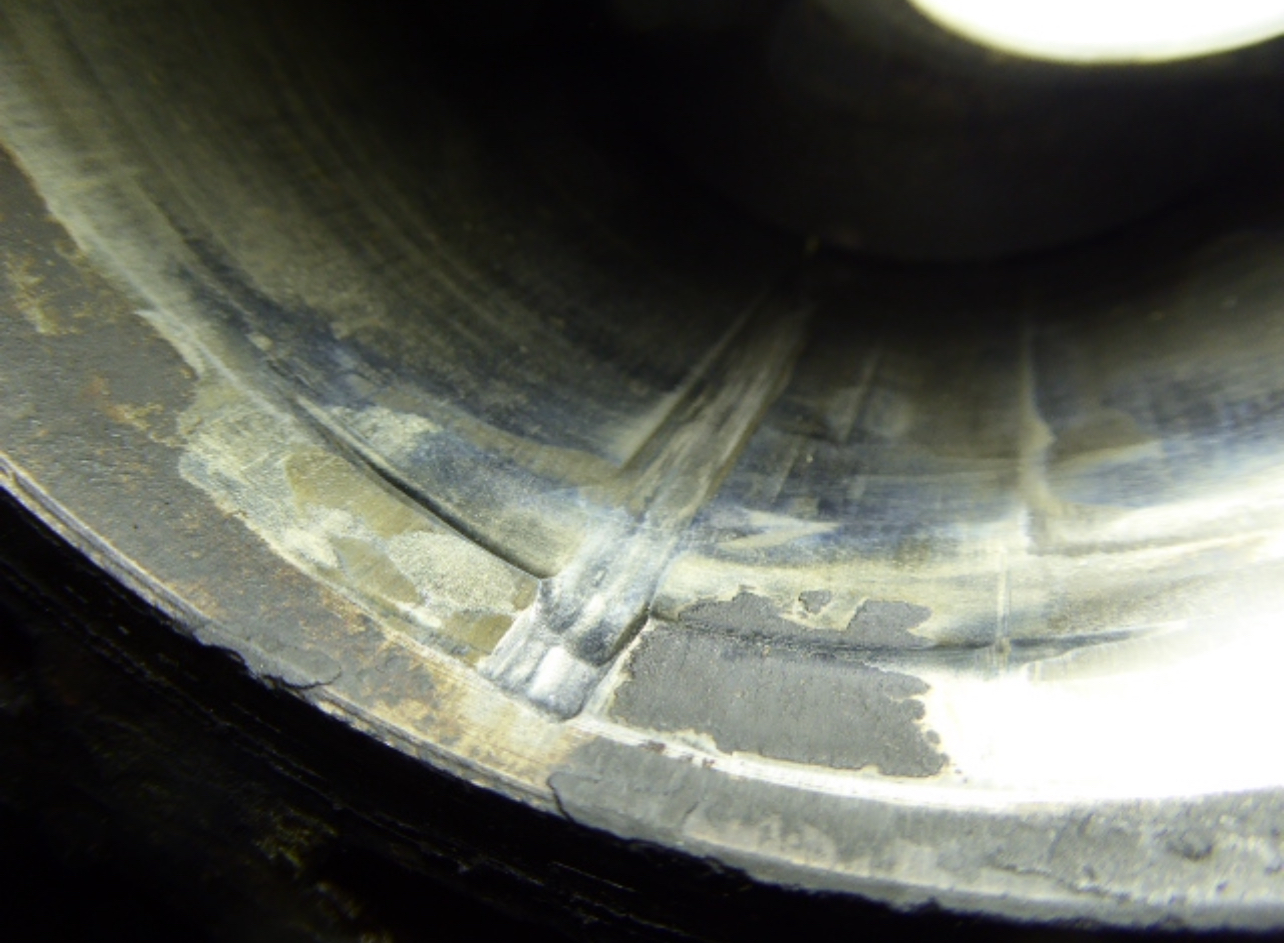

Is that the piston head? If it came out that clean then you had a head gasket leak. Is the piston scored? It looks that way in the picture.

[Jelonek]

Nr 6 is the Problem
No, I am looking for a hub in Germany for specialist who can do it

[Jelonek]

Hello all, Toro guys
I need your help. Would you like to tell me if I can put down the engine without to touch the transmission? Where is the suspension of transmission?
after put down The engine is transmission and differential fully stable or I need a special equipment to protect it?

To take off the engine I need at the front two screws on the right side two screws and on the left side … the rest are only a screw on transmission
is That right or the fix points …on another position
With best regards
Wojtek

[Jelonek]

No idea?

[Jelonek]

Update…. The engine is in the engine-clinic and I wait for some information from mechanics

[Slick66]

Hi Jelonek, you can take out only the engine but you must securely support the transmission. You do not want the transmission to move down at all. I belive there is some unbolting to do near the axles/differentials. Also take special note of the front engine mount.

[Slick66]

Make sure to buy volume 1 and 2. They come in a set. Everything specific to the Toronado is in the second book.
